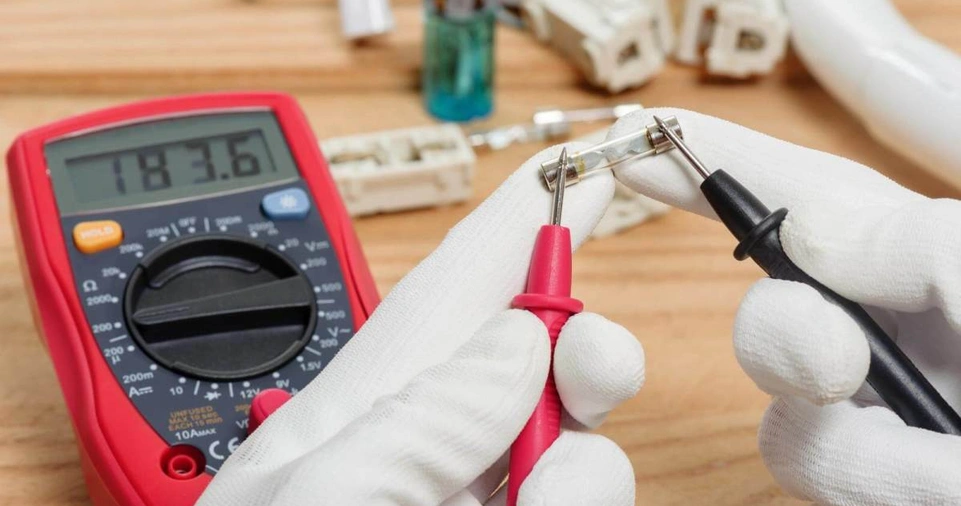

A multimeter is an essential tool for electricians, hobbyists, and DIY enthusiasts. Whether you want to check voltage, current, or resistance, a multimeter allows you to diagnose electrical circuits quickly and safely.
This guide will provide a comprehensive overview of how to use a multimeter, covering its different functions, safety precautions, troubleshooting techniques, and practical applications.
What is a Multimeter?
A multimeter is an electronic measuring instrument that combines multiple measurement functions in one device. It can measure:
- Voltage (V) – AC and DC voltage levels
- Current (A) – AC and DC current
- Resistance (Ω) – Measuring resistance in ohms
- Continuity – Checking if a circuit is complete
- Capacitance – Measuring capacitor storage
- Frequency – Measuring signal frequency
- Temperature – Some models have thermocouples for temperature readings
- Diode Testing – Checking diode integrity
- Transistor Testing – Evaluating transistor function
There are two types of multimeters:
- Analog Multimeter – Uses a needle and dial to display readings.
- Digital Multimeter (DMM) – Displays readings on an LCD screen, making it easier to read.
Parts of a Multimeter
Understanding the different parts of a multimeter is crucial for proper usage. Here’s a breakdown:
| Part | Function |
|---|---|
| Display | Shows the measurement readings (LCD for digital, needle for analog) |
| Dial/Rotary Switch | Used to select different measurement modes |
| Probes | Red (positive) and black (negative) probes for connecting to circuits |
| Ports/Input Jacks | Different sockets for connecting probes (COM, V/Ω, A) |
| Hold Button | Freezes the displayed value for easy reading |
| Backlight Button | Illuminates the display for low-light environments |
| Range Selector | Allows switching between manual and auto-ranging modes |
Safety Precautions
Before using a multimeter, follow these safety tips:
- Always start with the highest range setting to avoid damaging the multimeter.
- Never measure resistance or continuity in a live circuit.
- Use insulated probes and avoid touching metal parts while measuring.
- Disconnect power before switching test modes.
- Ensure proper placement of probes in the correct ports.
- Wear safety goggles when testing high-voltage components.
- Replace damaged probes or cables immediately.
ALSO READ: How to Choose the Best Gaming Headset for Immersion?
How to Use a Multimeter?
Measuring Voltage
Voltage measurement is one of the most common uses of a multimeter. Follow these steps:
- Turn the dial to the V (voltage) setting – Choose AC (V~) or DC (V—) depending on what you’re testing.
- Insert the black probe into the COM port and the red probe into the V port.
- Place the probes across the circuit/component you want to measure.
- Read the voltage on the display.
| Voltage Type | Common Uses |
|---|---|
| DC Voltage | Batteries, circuits, power supplies |
| AC Voltage | Wall outlets, electrical appliances |
Measuring Current
To measure current:
- Set the dial to A (current mode), selecting AC or DC as needed.
- Move the red probe to the appropriate port (10A for high current, mA for low current).
- Place the multimeter in series with the circuit (disconnect a connection and insert the probes in between).
- Read the current value on the screen.
Measuring Resistance
- Set the dial to Ω (ohms, resistance mode).
- Insert the black probe into COM and red probe into the V/Ω port.
- Touch the probes to the two ends of the resistor or component.
- Read the resistance value on the display.
Checking Continuity
Continuity testing helps to verify if a circuit is complete.
- Turn the dial to the continuity symbol (○∣○).
- Insert probes into COM and V/Ω ports.
- Touch the probes to both ends of the circuit/component.
- If the circuit is complete, the multimeter will beep.
Measuring Capacitance
For checking capacitors:
- Set the dial to capacitance mode (F symbol).
- Insert the probes into COM and capacitance port.
- Touch the capacitor leads and wait for the reading.
Measuring Frequency
- Select Hz (frequency mode) on the dial.
- Insert the probes into COM and Hz ports.
- Place the probes on the signal source.
- Read the frequency on display.
Testing Diodes
- Turn the dial to diode mode.
- Place the black probe on the cathode and red probe on the anode.
- If the diode is functional, you’ll see a voltage drop value.
- If it reads OL (over limit) in both directions, the diode is bad.
ALSO READ: How to Understand Artificial Intelligence in Simple Terms?
Common Multimeter Mistakes
Avoid these errors when using a multimeter:
- Setting the dial to the wrong function (e.g., measuring voltage in current mode).
- Forgetting to switch probe positions when measuring current.
- Using an inappropriate range setting, leading to inaccurate readings.
- Not checking the battery of the multimeter for consistent readings.
- Attempting to measure high currents without using the correct port.
Troubleshooting with a Multimeter
A multimeter can be used for various troubleshooting tasks:
| Problem | How to Test | Expected Reading |
|---|---|---|
| Dead battery | Measure DC voltage across battery terminals | Below 1.5V (for AA) indicates replacement needed |
| Blown fuse | Check resistance of fuse | Low resistance means fuse is good, high means it’s blown |
| Broken wire | Test continuity | No beep means wire is broken |
| Faulty switch | Test continuity in on/off positions | No continuity in ON position means switch is bad |
| Short circuit | Check resistance between points | Low resistance means short circuit |
| Defective diode | Test in diode mode | OL (over limit) in both directions indicates failure |
Choosing the Right Multimeter
Consider these factors when buying a multimeter:
- Accuracy – Higher precision for critical measurements
- Auto-ranging vs. Manual – Auto-ranging simplifies use
- Additional Features – Capacitance, temperature, frequency, diode testing
- Safety Ratings – Higher category ratings (CAT I-IV) for protection
- Durability – Rugged casing and water resistance for fieldwork
ALSO READ: How to Monetize Your Blog Using Affiliate Marketing?
Conclusion
Using a multimeter effectively can help you diagnose and troubleshoot electrical issues safely.
By understanding the different functions, safety measures, and practical applications, you can confidently work with electrical circuits.
Whether you’re testing a simple battery or diagnosing a complex circuit, a multimeter is an indispensable tool in any toolkit.
Investing in a high-quality multimeter with the right features can enhance your accuracy and efficiency in electrical work.
